SMARTRIG-2 REPORTER AUDIO ADAPTER

Start your own Internet radiostation
with an AIRMATE-USB!

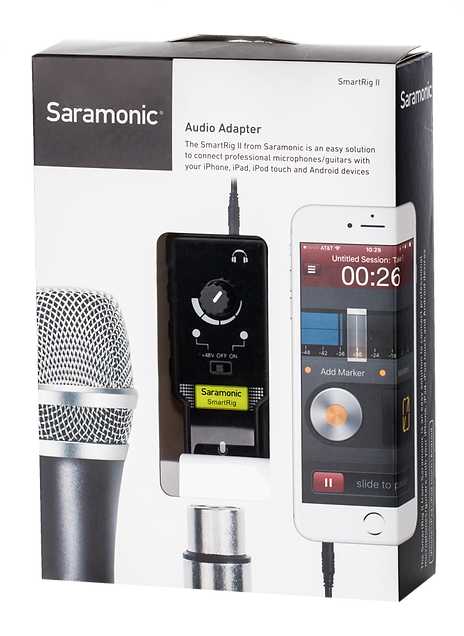

SmartRig II (2).png

introduction

A great complementary product for our GSM Hybrid is the Audio Adapter SmartRig 2 that we can offer as an "in the Field" product.
Together with a dynamic or condenser Mike, headphones and a smart-phone (Android or Apple) running a recording app on it could be your complete mobile reporter set for a minimum of investment.

Live reporting to the Studio in Voice-HD directly to our GSM Hybrid is now possible (depends on your GSM and provider)

The SmartRig-2 XLR Audio Adapter is an easy solution to connect any professional microphone to an iPhone, iPod touch, or iPad and Android devices.



As a high-quality microphone pre-amp, SmartRig allows you to use professional stage microphones or high-end studio microphonesto be used as reporter mics in live situations together with your mobile iOS or Android devices as the mobile transmitter to your studio.

features

  • XLR microphone input connector

  • +48V phantom power for use with condenser microphones

  • 3.5 mm Headphone output for monitoring

  • Connection to your phone by way of a 3.5 mm phone type connector of 50cm

  • On/Off/+48V switch

  • Gain control

  • Power/Phantom Power provided by an internally housed 9V battery (not included)

more to know..

The Saramonic Smartrig 2 Microphone Adapter can be used for your smartphone with an iOS or Android operating system. This way you can capture the sound in high quality during your recordings.



This adapter runs on a 9V battery, providing +48V phantom power to condenser microphones.

The adapter has an XLR and a 3.5 mm female port connection.

You can attach headphones to this mini jack connection so that you can review the live recordings and adjust the sound level if necessary.

The moment you use the Microphone Adapter with an iPhone 7 or newer, you must use the Lightning to mini jack cable. So ensure optimal sound with this Saramonic Smartrig.

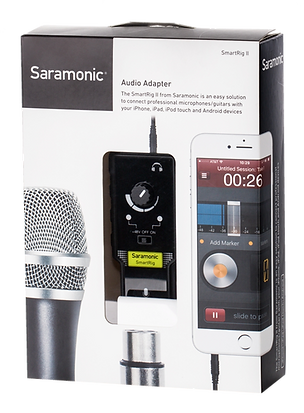

smartrig set

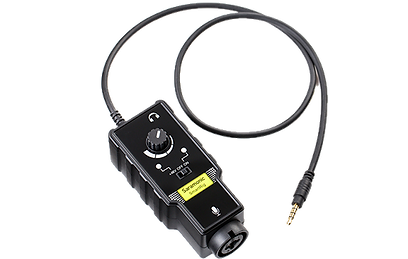

smartrig-2
smartrig-2 in use

inside the package

1x SmartRig-2

1x User Guide

1x Velcro Strip

1x Warranty Card

PURCHASE YOUR SMARTRIG-2 at

USERS GUIDE OF SMARTRIG-2

specs

  • Frequency Response: 20Hz to 20kHz (+/- 1.5dB)

  • Noise: -98 dB full band (with Phantom Power)

  • Maximum Output Level: 2 Vrms

  • Distortion: 0.025% THD

  • Phantom Max Current: 13mA

  • Dimensions: 8.8cm x 4.1cm x 4.2cm

  • Weight: 75g (2.57oz) (shipping weight 200gram)
