LYRA DIGITAL ON-AIR / PRODUCTION MIXER

introduction

The Lyra is a fully digital desktop production mixer. Its concept originates from heavy investigations among end users and distributors looking for a versatile compact small universal desktop mixer.

The core of the Lyra is a sophisticated DSP engine. This processing engine involves the latest developments in DSP technology by Texas Instruments.

An intense cooperation between T.I. and D&R has resulted in a digital audio mixer offering tremendous DSP power and a superb sonic quality.

Although the Lyra is a digital console, it is operated with the same comfort as a conventional analog production mixer.

No fundamental concessions have been made towards reliability, high speed controller-response and system stability.

Apart from that there is the unique capability to control Lyra's functions over the Internet

The totally software-controlled Lyra secures absolute stability due to the dedicated written DSP software. Via the UTP connector (100 base-TX) you can configure the Lyra with your laptop/PC through a standard Internet web server anywhere on the globe.

Diagnosing is also possible.

features

- 32 bit floating point processing

​- Less then 0,5 milliseconds latency

​- Delay through processing engine

​- Digital I/O’s are 16/20/24 bit and supports sample freq.

  from 32KHz to 96KHz

​- Sample rate converters on all digital inputs

​- EQ and Dynamic on all processing channels

​- All faders are labeled

​- Real time info displayed on every module

​- Integrated digital patching system

​- All in/outputs with GPIO’s

​- Remotes with Start, Stop (pulse/continuously)

​- Auto Red light function

​- CobraNet option

​- Fader, Switch or Cue start

​- Word clock out

​- Card reader

​- Ethernet Connector via TCP/IP

4 fader control surfaces

These extensive possibilities can be controlled from an easy to understand 4 fader desktop control surface.


A second 4 fader control surface can be connected to give 8 stereo modules.

8 fader control surface

You can also choose for an 8 fader control surface.

Easy connected with the I/O rack

by an 15P Sub-D cable

19" rack I/O & core

The Core and I/O unit are housed in a very compact 2HE rack unit.
Control of all functions is by way of an easy to understand 4 fader desktop control surface + 4 fader extender or an 8 fader control surface.

break-out panels (optional)

This rack is ideal for balanced mic inputs.

This rack is for balanced line in/outputs and or inserts.

This rack is for balanced line inputs.

It also includes remote connectors.

This rack is for balanced line outputs.

It also includes remote connectors.

This rack is for balanced line in and outputs. It also includes remote connectors.

This rack is for balanced digital in outputs. It also includes remote connectors.

You can simple connect our break out panels to the

LYRA I/O back panel connectors by these small boards.

equalizer

dynamics section

buss system

The Eq section of the Lyra consists out of a three band full parametric equalizer.

All bands provide a boost/cut of 18 dB max.


A Q-factor between 0.1 and 3 can be set within a frequency range from 10H to 20KHz in the configuration software. This applies for all bands.


The LF-control features a special function.

When attenuating, the LF band functions as a shelving filter. But when amplifying the LF band transforms the shelving function into a bell shaped curve.

This prevents amplification of any unwanted subsonic frequencies.




The dynamic range control is a highly intelligent compressor. A lot of effort has been spent on creating a user-friendly intelligent yet effective dynamics control algorithm.

One single control sets the amount of compression applied.

The absence of ratio’s and thresholds allow fast and ‘instant-result’ adjustments during on-air situations.



The 4 stereo processing channels are fed to the main busses by means of a digital output router. The four system busses are: Program bus, Sub bus, Aux bus and Clean feed bus. The signal on each bus always appears in analog form on a dedicated output.

The audio-paths within the Lyra are programmable due to the presence of an input router.
This eliminates the need for an external patch-bay. The input matrix is situated between the input modules and the DSP.
It allows a custom configuration of the various inputs into the 4 stereo processing channels.


Signal processing takes place in one DSP. Processing uses precise floating-point calculations at a word-length of 32 bit.


All audio signals throughout the console preserve their 24 bit resolution from the input conversion. Even 16 bit data streams, like CD-players, have 24 bits reserved.


This way the audio data always preserves the sonic characteristics of the original input signal. Processing includes EQ as  well as dynamics control in all 4 channels.

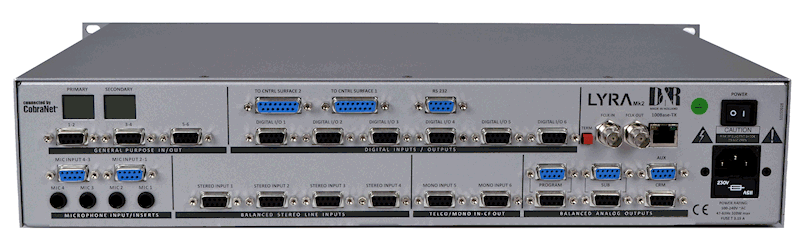

The outputs of the Lyra are available in analog and digital form. There are six 9 pin sub-D connectors on the back of the 19”rackunit to provide you with all then outputs. Every main buss has its own dedicated analog output. The Lyra features two main outputs in analog and digital format.

routing

processing

outputs

inputs

The Lyra has a separate control surface that can be controlled up to 10 meters away from the 19”rack mountable in/output interface.

The Lyra accepts all standard input formats ranging from microphone signals, analog line, AES/EBU, S/P-DIF coaxial, S/P-DIF optical.

The 4 mic inputs are electronically balanced and provided with individual phantom power switches and 4 insertion points.


A convenient aspect of the Lyra is that all Mic connectors are on industry standard XLR type connectors, compact 9 pin Sub-D female connectors, cinch, jacks, as well as the usual digital format type of connectors.

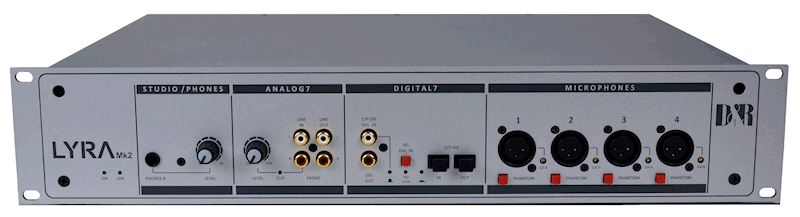

On the front panel of the 19” module you can connect your second set of headphones (set one is on the control surface itself).


For easy access we have positioned the analog Cinch in/outputs of input 7 (with level control for the inputs) on the front panel of the 2HE 19”in/output rack. Input 7 is also positioned on the front of the 19” module for easy access.


A digital input (also nr 7) on the front panel of the 19” module gives you S/P-Dif in/outputs.

Four electronically balanced mic inputs with switch-able phantom power on XLR’s complete the front panel input access.

There are also 2 mono inputs available for connecting external Hybrids.

three band EQ

These processing channels consist out of a three band parametric Eq-section and dynamics control application. The signal output by the DSP channel can be routed to main stereo busses.

Every main buss is stereo and has dedicated analog outputs, but the bus signals can also be routed to a digital output as well.

Monitoring functions are analog making interfacing with the outside world very simple and easy to understand.



The Lyra-4 has four processing channels with 100m faders with large illuminated On and Cue switches an a rotary encoder for multiple functions.

A LCD per channel shows input selections and many other functions.

In the right hand section of the console are dedicated instant access functions for Source selection, Gain, EQ on/off, Dynamics on/off, Aux, Pan, Program and Sub selection.



The analog master section with 16 segment led bars and source select switches makes interfacing very easy with all sorts of  monitoring devices.

A CobraNet option is available for integration within our network solution to share more sources.

An Ethernet connector is available for remote control via TCP/IP protocol.

all in/outputs

- 6x stereo Dig inputs (AES3)

- 1x stereo dig input (s/p-dif optical or coax)

- 6x stereo balanced line inputs

- 1x stereo unbalanced line input

- 4x balanced mic inputs + Inserts






- 6x stereo digital outputs AES3

- 1x stereo digital output s/p-dif optical + coax

- 1x stereo Program analog

- 1x stereo SUB analog

- 1x stereo CUE analog

- 1x stereo AUX analog

- 1x stereo CRM analog

- 2x stereo PHONES analog

overview

The totally software-controlled Lyra secures absolute stability due to the dedicated written DSP software.



Via the UTP connector (100 base-TX) you can configure the Lyra with your laptop/PC through a standard Internet web server anywhere on the globe.

Diagnosing is also possible.

The Lyra is a fully digital desktop production mixer.

Its concept originates from heavy investigations among end users and distributors looking for a versatile compact small universal desktop mixer.



software

The LYRA is completely programmable for nearly every aspect of the in- and output behavior.

remote software

It is also possible to service and/or control the Lyra from a remote location. You can log on to Lyra’s web-server, check settings and its log data and simply access the FTP server to transfer presets and or update firmware. It could not be easier.


You can even control your audio from remote locations by using a TCP/IP connection. The ActiveX control,

(which is part of the package), makes it possible to write your own
programs, like; scheduling, or make scripts (macro’s) to control the Lyra.

specs

MIC inputs








CMRR MIC inputs



Frequency response





Line inputs



















Line Outputs



















Phones Output













Digital Inputs















Digital outputs

: Electronically balanced

  Input impedance 2k Ohm

  Noise -128dBr (60db gain range)

  Input sensitivity -70dBu up to +20dBu (PAD)

  Total harmonic Distortion+Noise 0,002% at 1kHz G=100

: 85dB @ 1kHz, maximum gain



: 20Hz - 20kHz ± 0.1dBr (sample rate 48kHz)

: Crosstalk 1kHz < -115dBr

: Phantom is switchable +48 Volts



: Electronically balanced

: Input impedance 10k Ohm

: Input sensitivity +6dBu,
  maximum input +26dBu (+/- 20dB gain range).

: Dynamic Range 118dB (AD converter PCM 1804)

: Total harmonic Distortion+Noise 0,004% at 1kHz G=100

: CMRR Line inputs: 30dB @ 1 kHz

: Frequency response 20Hz - 20kHz ± 0.1dBr

  (sample rate 48kHz)



: Crosstalk 1kHz < -120dBr

: Electronically balanced

: Output impedance 50 Ohm.

: Nominal output level +4dBu / -10dBv,balanced
  (optional transformers)

: Dynamic Range 118dB (AD converter PCM4104)

: Total Harmonic Distortion plus Noise 0,001%

: Frequency response 20Hz - 20kHz ± 0.1dBr
  (sample rate 48kHz)



: Stereo unbalanced

: Output impedance 5R Ohm.

: Nominal output level +6dBu, maximum output +26dBu

: Max. Output power, 1W into 32R Ohm, 80mW into 600R Ohm

: Dynamic Range 114dB (AD converter CS4385)

: Frequency response 20Hz - 20kHz ± 0.1dBr (sample rate 48kHz)



: AES/EBU (AES3) or S/P-DIF Transformer balanced

: Input Impedance: 110R Ohm / 75R Ohm (jumper setting)

: Differential input sensitivity 200mV

: Dynamic Range 112dB (AD converter PCM 1804)

: Total Harmonic Distortion plus Noise (sample rate converter)

   -105dBfs (0.001%)

: Sampling rate up to 192kHz



: AES/EBU (AES3) or S/P-DIF

: 112db Dynamic range (DAC CS8420)

: Output Impedance: 110 Ohm

: Output level: AES3 2-5 Vpp

: Clock output 75 Ohm TTL

: 24 bit, 32kHz, 44.1kHz or 48kHz

: Total Harmonic Distortion plus Noise -102dB

GPIOs













EQ




















DYNAMICS







Processing





Channels





Clock







External sync





Power supply



EAN CODES



LYRA-4

LYRA-4 EXT

LYRA-8

LYRA I/O

: All GPO’s are by opto isolated relays able to handle

  a maximum of 50V at 200mA or 5V TTL 560R

  (8mA) out


: All GPI’s have a 5V TTL 100kOhm circuitry.

  GPIO-MIC has a 5V/56Ohm LED driver circuit:



: EQ is 3 band, any band can perform one of

  the following functions/specifications:

  Low : +/- 18 dB (120Hz center shelving,

  Q: 0.1 to 10 variable.



  MID : +/- 18 dB (1200Hz center bell,

  Q: 0.1 to 10 variable



  High : +/- 18 dB (12000Hz shelving,

  Q: 0.1 to 10 variable



: Interactive one knob control of threshold,

  compression ratio, expander ratio

  as well as attack and release times.



: 32 bit floating point

: 8 stereo channels per DSP card.



: Level : 0dBu=0.775Vrms

: 0dB internal = -20 dBFs.



: Sample rate: 32kHz, 44.1kHz, 48kHz, +/-

  20ppm

  (internally synchronized)



: 32kHz, 44.1kHz, 48kHz +/- 50ppm

: Jitter max 150pSec



: Internally switched power supply.

: 100-240 Volt, 50/60Hz (1.5 A Max)





: 7436917139114

: 7436917139121

: 7436917139138

: 7436917139145
